YIXIN 12V Starter Solenoid Relay 89-817109A3 89-817109A2 89-817109A1 Compatible with Mercury Marine 75 80 90 100 105 115 V135 V150 V175 V200 V225 V250
Product details
| Management number | 234291902 | Release Date | 2026/06/27 | List Price | US$6.79 | Model Number | 234291902 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

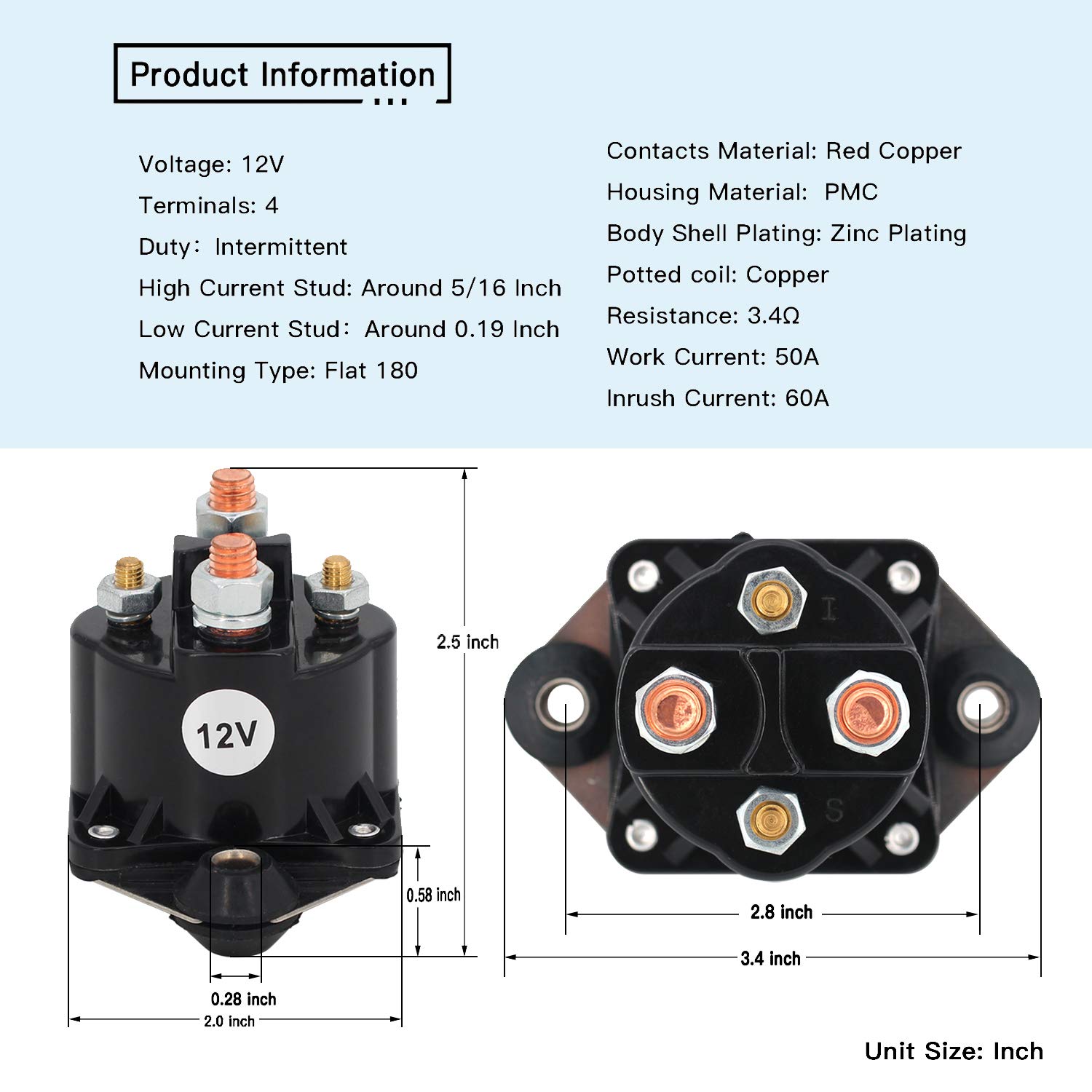

【Spec】 Voltage: 12 Volt Terminals: 4 Duty：Intermittent High Current Stud: Around 5/16 Inch Low Current Stud：Around 0.19 Inch Mounting Type: Flat 180 Contacts Material: Red Copper Housing Material: PMC Body Shell Plating: Zinc Plating Potted coil: Copper Resistance: 3.4Ω Work Current: 50A Inrush Current: 60A 【Replace for】 Mercury 89-817109A3 Mercury 89-817109A2 Mercury 89-817109A1 Mercury 87-803632T Mercury 89-F460917-1 Sierra 18-5834 Sierra 18-3835 Arco SW109 SW295 Arrowhead SMR6010 Arrowhead SMR6020 Arrowhead PL15-457 J&N 240-22131 J&N 240-20010 WAI 67-731 EMP Parts 4-5834 4-5835 Cheysle Marine 460917-1 Crusader 22611 Force 89-F460917-1 Pleasurecraft R130014 Prestolite 15-295 15-457
- 【REPLACE FOR】 Mercury 89-817109A3 89-817109A2 89-817109A1 MERCURY MARINE 87-803632T 89-F460917-1 Sierra 18-5834 18-3835 18-5835 Arco SW109 SW295 Arrowhead SMR6010 SMR6020 PL15-457 J&N 240-22131 240-20010 WAI 67-731 EMP Parts 4-5834 4-5835 MARINE 460917-1 CRUSADER 22611 R130014 FORCE 89-F460917-1 PLEASURECRAFT R130014 PRESTOLITE 15-295 15-457
- 【Compatible With】 Mercury Marine 75 80 90 100 105 115 V135 V150 V175 V200 V225 V250 FORCE 40 50 75 90 120
- 【SPEC】12 Volts 4 terminal intermittent duty
- 【NOTE】Take care not to overtighten the nut/terminal during installation
- 【Customer Service】 If you have any inquiries about model or installation or other aspects, please feel free to contact us before ordering.
| UPC | 194852804067 |
|---|---|
| ASIN | B08PCGNVMR |
| Wattage | 8500 watts |
| Brand Name | YIXIN |
| Part Number | 89-817109A3 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | YIXIN |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 60 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 3.4 Ohms |
| Contact Material | Copper |
| Specification Met | Emp |
| Contact Current Rating | 50 Amps |
| Maximum Switching Current | 50 Amps |
| Minimum Switching Voltage | 12 Volts |
