MECCANIXITY 30 Pcs 1N4003 Rectifier Diode, 1A 200V DO-41 Electronic Silicon Diodes for Charger Industrial Power Adapter Supply Inverter Switching Power Supply

★★★★★ 4.3 138 reviews

US$2.05
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by akshaymehta.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$2.05
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Jun 14
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by akshaymehta.in
Free 30-day returns Details

Product details

Management number 229732966 Release Date 2026/05/31 List Price US$2.05 Model Number 229732966
Category
  • These are straight-plug planar silicon diodes for rectification. These diodes are designed for use in chargers, industrial power supplies, motor drives, inverter switching power supplies, and more.

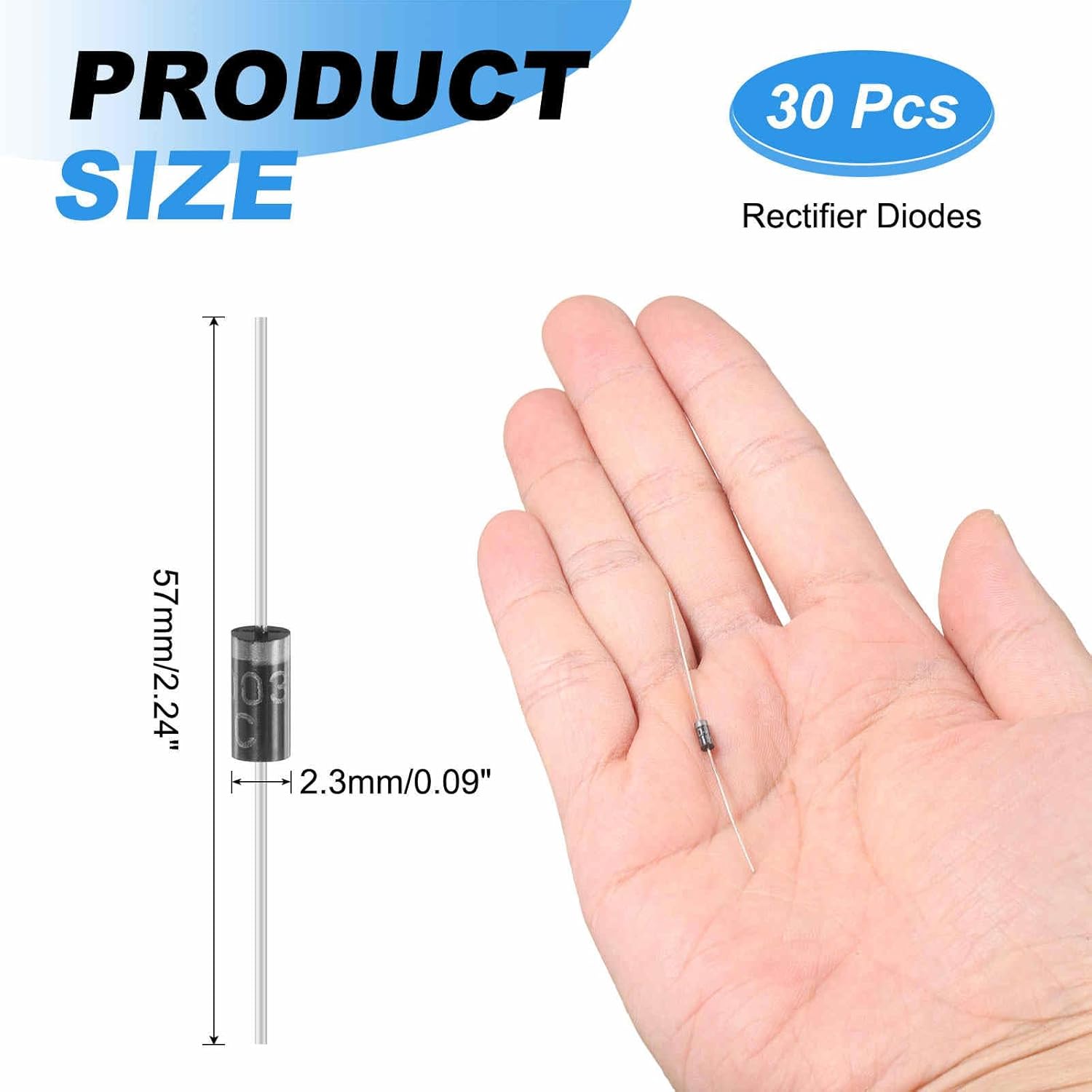

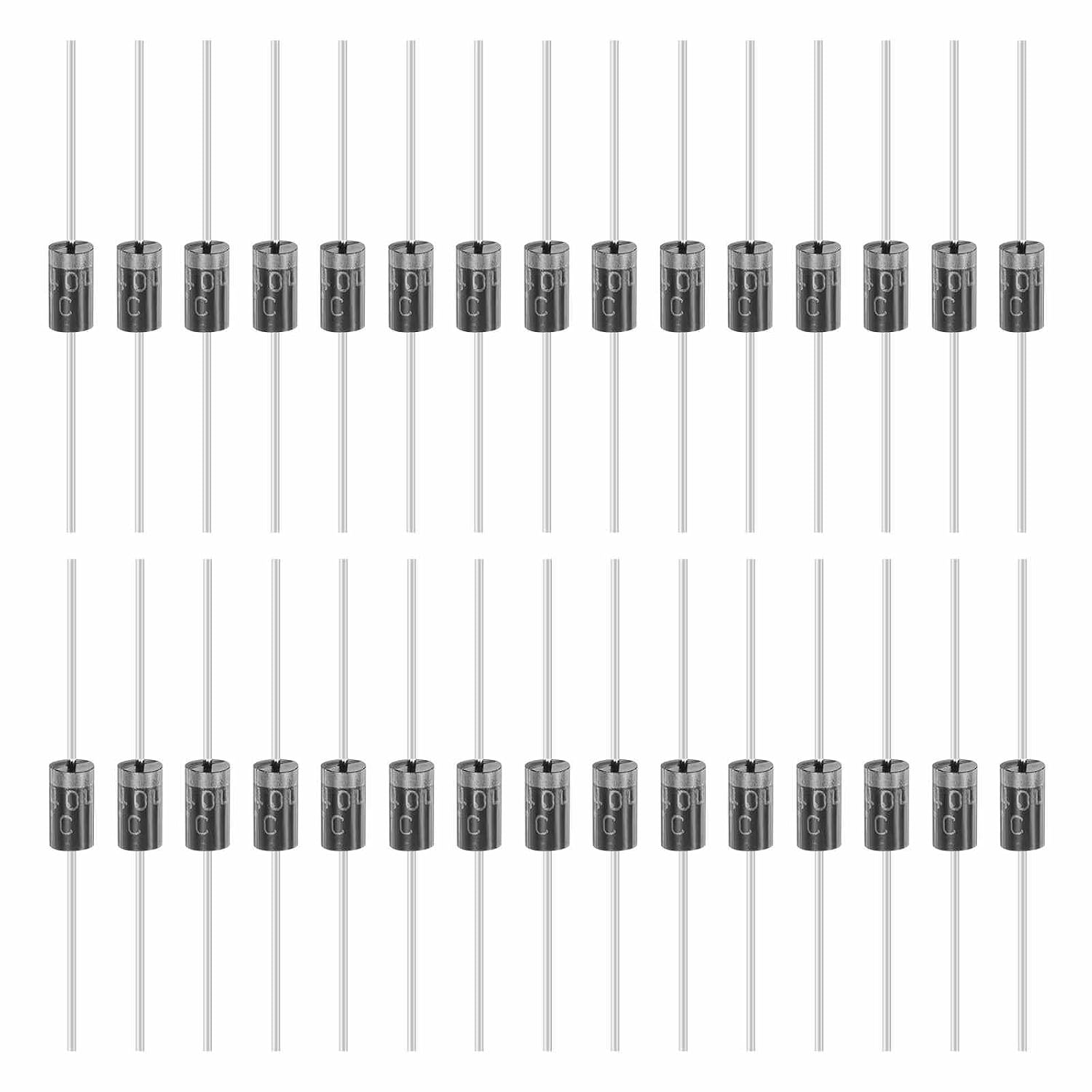

  • Model: 1N4003; Package Type: DO-41; Forward Current: 1A; Maximum Repetitive Peak Reverse Voltage: 200V; Overall Size: 57mm x 2.3mm/2.24" x 0.09"(L*W); Quantity: 30 × Rectifier Diodes
  • The Diode for Rectification features a classic axial lead design, simplifying both manual soldering and automated assembly. The rugged casing resists mechanical stress, while the straight-lead configuration ensures secure PCB mounting, reducing the risk of vibration-induced failures in portable devices. These diodes feature low reverse and high forward current capability and can withstand high-temperature soldering.
  • Align the diode pins with the through-holes on the circuit board and insert them vertically. Slightly bend the exposed portion of the pins. Use a soldering iron and solder to solder the pins to the circuit board pads. After soldering, use diagonal pliers to cut off the exposed portion of the pins.
  • Before installation, check the markings on the circuit board to ensure that the direction of the diode is consistent with the circuit design. Ensure that the solder joints are full, without cold solder joints or short circuits, and the roots of the pins must be completely covered with solder.
ASIN B0FYR15Y9M
Item Weight 0.352 ounces
Manufacturer MECCANIXITY
Package Dimensions 3.54 x 2.32 x 0.55 inches
