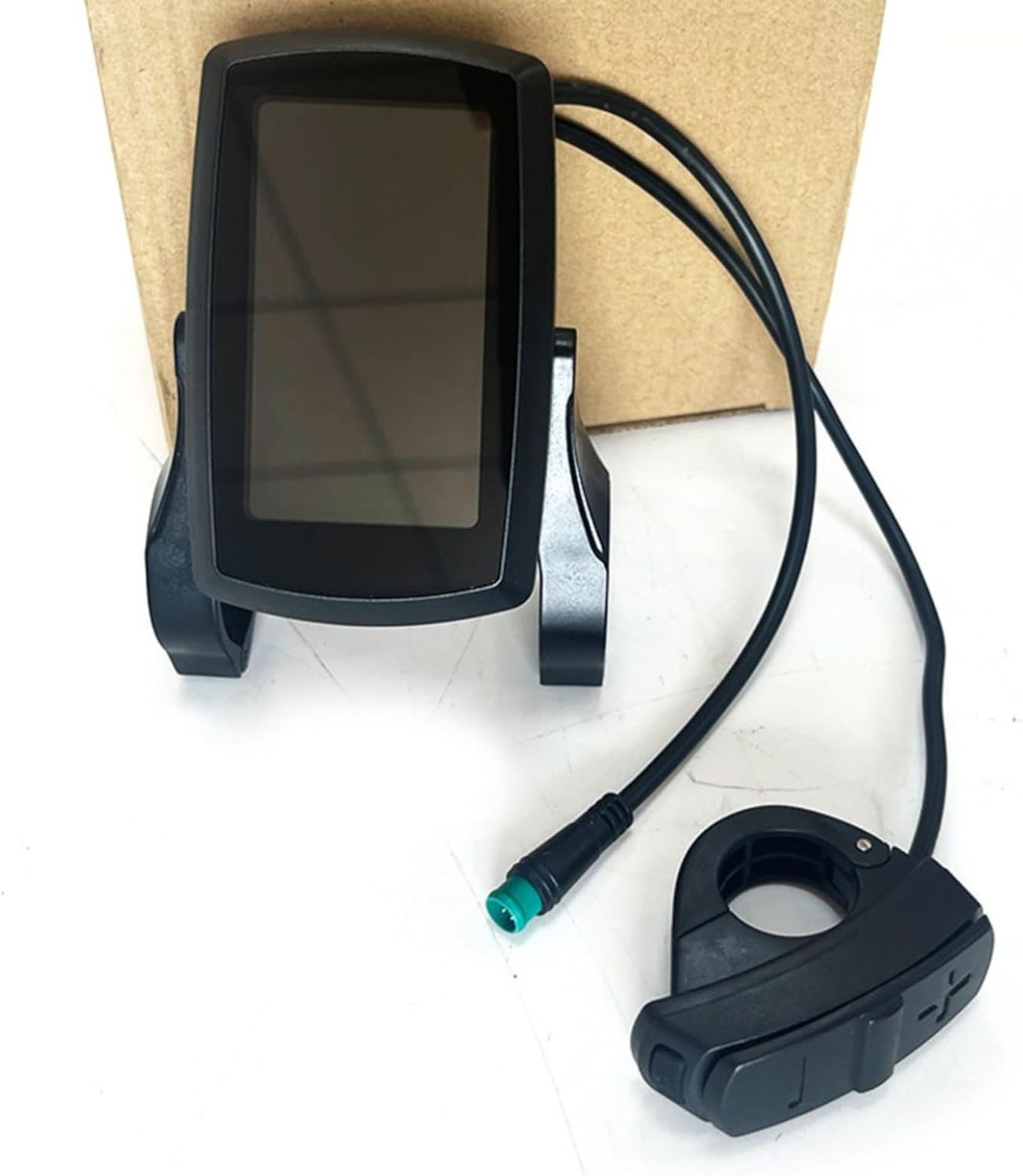

E-Bicycle LCD Display Speed Control Panel 24V-72V 5-Pin Electric Bicycle Meter

Feature:support Voltage: 36V/48VThe lithium battery No. 2 protocol instrument and the controller are matched with the serial communication protocolso they cannot work independently or cannot be used after being connected to controllers with different protocolsAssistance gear adjustment and indicationSpeed display (including real-time speed, maximum speed, average speed)Mileage display (including single mileage and total mileage)Specification:*Material:abs*Color: black (As Pictures Show)*product name： ebike display*size : approx 95x58mmAssistant gears: 0-3 mode, 1-3 mode, 0-5 mode, 1-5 modeP01 backlight brightness: Dimmest at level 1 and brightest at level 3. P02 Mileage unit: 0 KM.1 MILE P03 Voltage level: 24V/36V/48V/52V/60V/72V, default 36V. P04 Cruise function: 0 off, 1 on, default 1. P05 Assist gear position:0-3 gear mode, 1-3 gear mode, 0-5 gear mode, 1-5 gear mode. P06 Wheel diameter: unit inch, accuracy 0.1. P07 speed measurement magnet number: 1-100. If it is a common hub motor, directly input the magnet number.If it is a high-speed motor, the reduction ratio needs to be calculated. The input data = the number of magnets × the reduction ratio.For example: The motor magnet number is 20, the reduction ratio is 4.3, and the input data is 86:20 ×4.3. P08 Speed limit: range 0-100km/h, 100 indicates no speed limit. P09 0start, non-0start Settings,0: 0 start.1: Non-0 start P10 drive mode setting 0: for Power assist drive (The output power is determined by the power assist gear. At this time, the handlebar is invalid.)1: Electric drive (driven by the handlebar, at this time the for power gear is invalid.)2: Power-assisted drive and electric drive coexist simultaneouslyP11 assist sensitivity setting range :1-24 P12 assist start-up strength setting range:0-5 P13 power-assisted magnetic steel disc type setting: 5,8, and 12 types of magnetic steel. P14 controller current limiting value setting: Default 12A range1-50AP15 controller undervoltage value P16 ODO reset setting Press and hold the up key for 5 seconds to ODO reset P17 Startup password setting PE is the startup password setting option. The startup password function of the instrument is generally not enabled by default. Users can enable the startup password of the instrument by setting PSd-y.The default factory password for the instrument is 1212. Customers can set other four-digit passwords by themselves. Please remember the password after changing it; otherwise, you will not be able to use the instrument.P18 automatic shutdown time setting PF is the option for setting the automatic shutdown time. To save the vehicle's battery power and achieve a higher driving range, this instrument panel is equipped with an automatic shutdown function after a long period without any operation. The automatic shutdown time range can be set from 1 to 60 minutes, with 00 indicating no automatic shutdown.Generally, it automatically shuts down after 10 minutes by default at the factory.Package content:1xdisplay

• Intelligent Ebike Speedometer: Monitor real-time, maximum, and average speeds with precision. This waterproof LCD display supports multiple voltage configurations from 24V to 72V, offering accurate data tracking for a smoother riding experience.
• Versatile LCD Display Control: Features adjustable assistance modes (0-5 gear settings) and customizable parameters including wheel diameter and speed limit. The intuitive interface allows personalized configuration for various electric bicycle setups.
• Comprehensive Mileage Tracking: Record both single trip and total distance with dual mileage metrics. The backlit screen offers three brightness levels, ensuring clear visibility day or night during your cycling adventures.
• Advanced Customization Options: Fine-tune performance with 18 programmable settings including cruise control, start mode, and sensitivity adjustment. The system supports password protection and auto-shutdown to conserve battery power.
• User-Friendly Installation: Designed with a standard 5-pin waterproof connector for secure wiring. The compact 95x58mm housing is crafted from long lasting ABS material, built to withstand daily use and outdoor conditions.
