Combination Eyewash Station, Emergency Eye Wash Shower Kit, 304 Stainless Steel, for Factory Laboratory

Specification Product Material: 304 Stainless Steel Design Pressure: 0.8MPA Sealing Pressure: 0.45MPA Working Pressure: 0.2-0.4MPA Shower Water Output: 75.5L/mIN Eye Wash Water Output: 11.4L/mIN Water Inlet Size: G1-1/4 Inch Female Thread Outlet Size: G1-1/4 Inch Female Thread Switching Method: Manual Switch (can be equipped with high performance pedal, hand foot linkage, more convenient and fast operation) Installation: 1. Directly installed on the ground of the work site, near hazardous work areas, at a distance of no more than 15 meters. The time to arrive at the eyewash in a straight line shall not exceed 10 seconds. When the substance splashes on the eyes, face, neck and body of the staff, the eyewash shall be used in a timely manner for major flushing to reduce injuries and gain valuable time 2. Non explosion proof electrical switches are not allowed within the 2m radius of the eyewash 3. No obstacles shall be stacked within a 2 meter radius of the eyewash 4. Eyewash cannot be installed across floors 5. Must be connected to drinking tap water 6. According to the installation hole position of the eyewash base, drill 3 holes with a diameter of 10mm on the ground where the eyewash needs to be installed, and fix them with stainless steel wall plug. 7. According to the assembly parts drawing of the eyewash, the whole eyewash parts shall be installed one by one. The water pipe connection must use a sealed thread seal tape. 8. During the installation process, it is best to have a 90 degree angle between the sprinkler head, eye wash elbow, and water outlet.

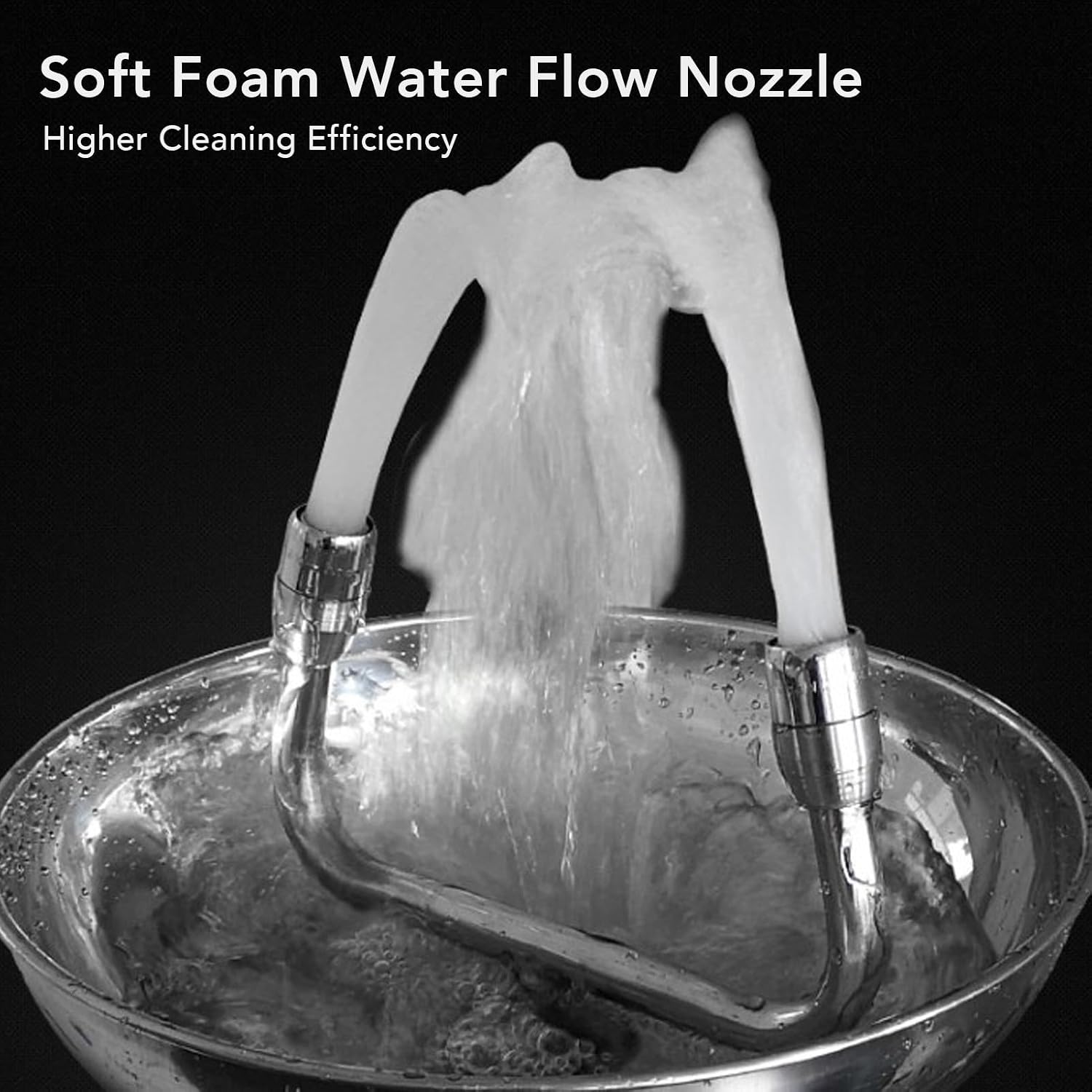

• 【Emergency Eye Wash】First aid shower eyewash station, double nozzle and shower design, filtering out impurities in the water, providing comfortable water and steam to meet the 15 minute convenient eye wash requirement.
• 【304 Stainless Steel】The eyewash station is made of 304 stainless steel, and , with glossy appearance, the comprehensive dust cover is not easy to lose, the nozzle is kept clean to prevent blockage.
• 【Large Shower Basin】Equipped with a large diameter shower basin, effectively extending the spraying area by 20%, filters make the water jet cleaner and gentler, without harming your eyes.
• 【Manual Control】The Emergency Shower Eye Wash Station controls water and switches through a hand pull shower rod and a hand push, including a self draining system to prevent water and ice accumulation.
• 【Multi-use】Emergency Eye Wash Station with Shower suitable for petro, steel mill, hospital, research laboratory, school, environmental purification factory, gas station, fire station, etc., to urgently clean foreign objects in the eyes and alleviate fatigue.
