| Management number | 230568781 | Release Date | 2026/06/18 | List Price | US$231.19 | Model Number | 230568781 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

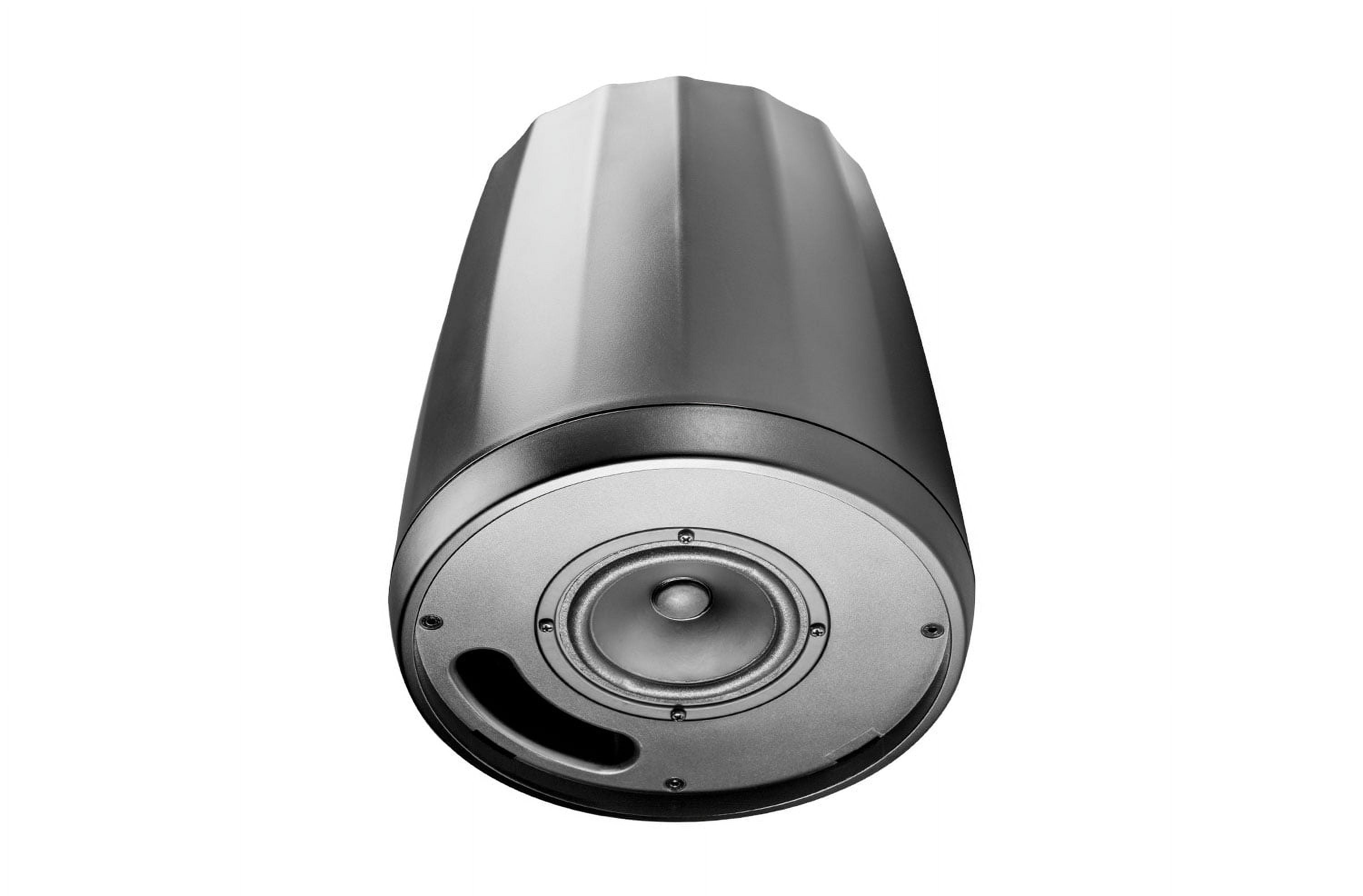

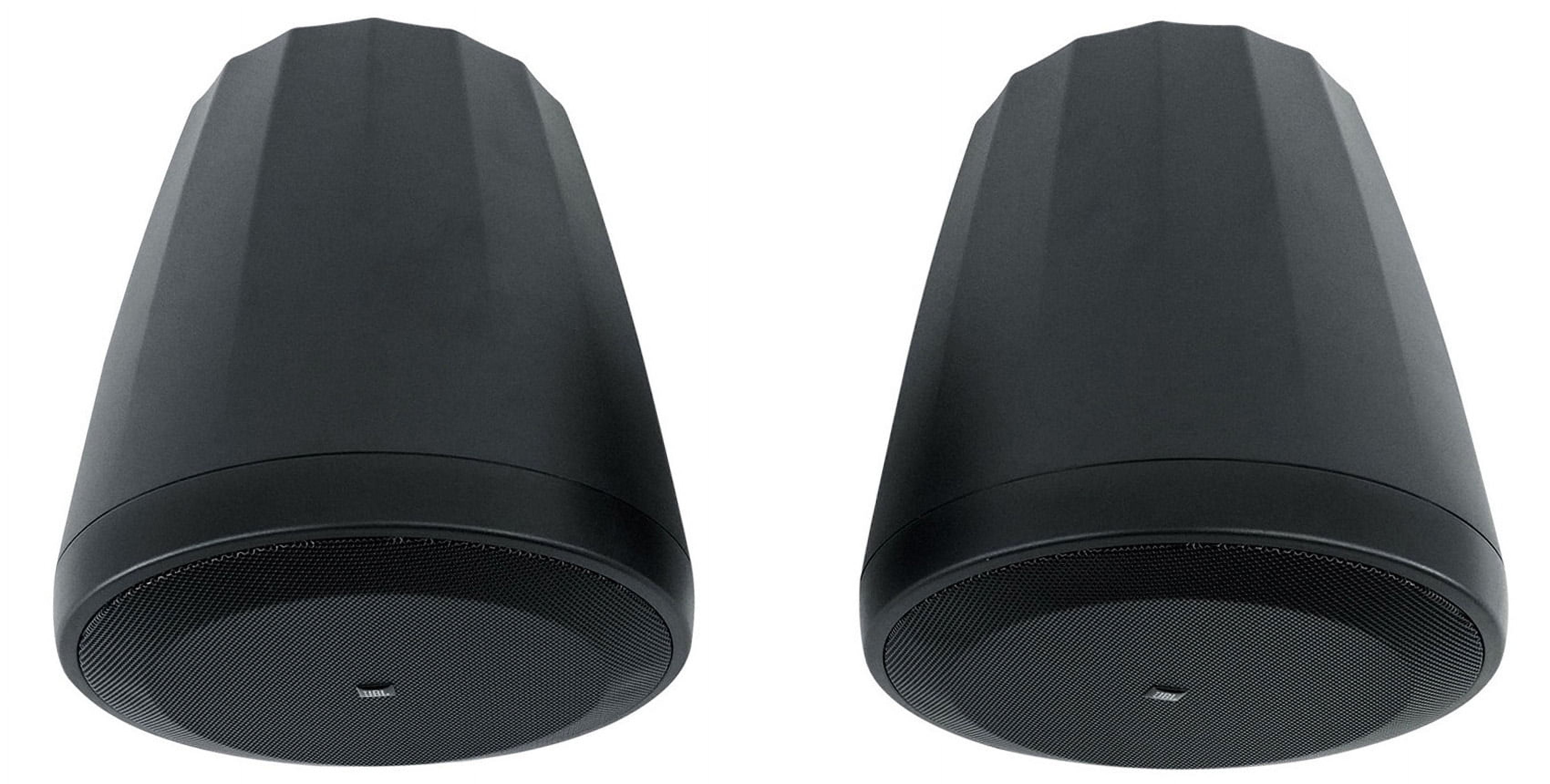

<p> Package Includes: </p> <ul> <li>(2) 2) JBL Control 64P/T 4" 30w Commercial 70v Black Hanging Pendant Speakers C64P/T</li> </ul> <hr /> <p> Description: </p> <p> Compact Full-Range Pendant Loudspeaker </p> <p>The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.</p> <p> Features: </p> <ul> <li>100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.</li> <li>Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.</li> <li>Stylish design, available in black or white (-WH).</li> <li>UL listed (speaker and hanging cable system).</li> <li>8&Omega; and 70V/100V operation</li> </ul> <p> Specifications: </p> <ul> <li>Frequency Range (-10dB): 65 Hz - 15 kHz</li> <li>Frequency Response (&plusmn;3 dB): 85Hz - 14 kHz</li> <li>Power Rating: 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)</li> <li>Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak</li> <li>Nominal Sensitivity: 88 dB Nominal</li> <li>Coverage Angle: 120&deg; (averaged 1 kHz to 4 kHz)</li> <li>Directivity Factor (Q): 6.2</li> <li>Directivity Index (DI): 7.3dB (averaged 1kHz - 16kHz)</li> <li>Maximum SPL (1m): 105 dB continuous pink noise, 111 dB peak</li> <li>Impedance: 8&Omega;</li> <li>Transformer Taps: 70V: 30W, 15W, 7.5W &amp; 3.7W 100V: 30W, 15W, 7.5W</li> <li>Transformer Insertion Loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W</li> <li>Drivers: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil</li> <li>Enclosure: High impact polystyrene</li> <li>Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)</li> <li>Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature &amp; UV. IP44 capability per IEC 529 - splash-proof rating.</li> <li>Input Connectors: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.</li> <li>Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple&trade; brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).</li> <li>Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple&reg;-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 &amp; Class 3426-81.</li> <li>Dimensions (H x W x D): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.</li> <li>Net Weight (each): 2.35 kg (5.2 lbs)</li> <li>Shipping Weight (pair): 6.07 kg (13.4 lbs)</li> <li>Included Accessories: Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.</li> <li>Optional Accessories: MTC-PC60 top pane
4) JBL Control 64P/T 4" 30w Commercial 70v Black Hanging Pendant Speakers C64P/T| Home speaker & subwoofer type | Satellite Speakers |
|---|---|
| Recommended location | Outdoor |
| Brand | JBL |
| Color | Black |
| Wireless | N |
| Woofer size | 4 in |
| Rms power rating | 100 W |
| Peak audio power handling | 200 W |
| Smart tech | N |
| Speakers | 2 |

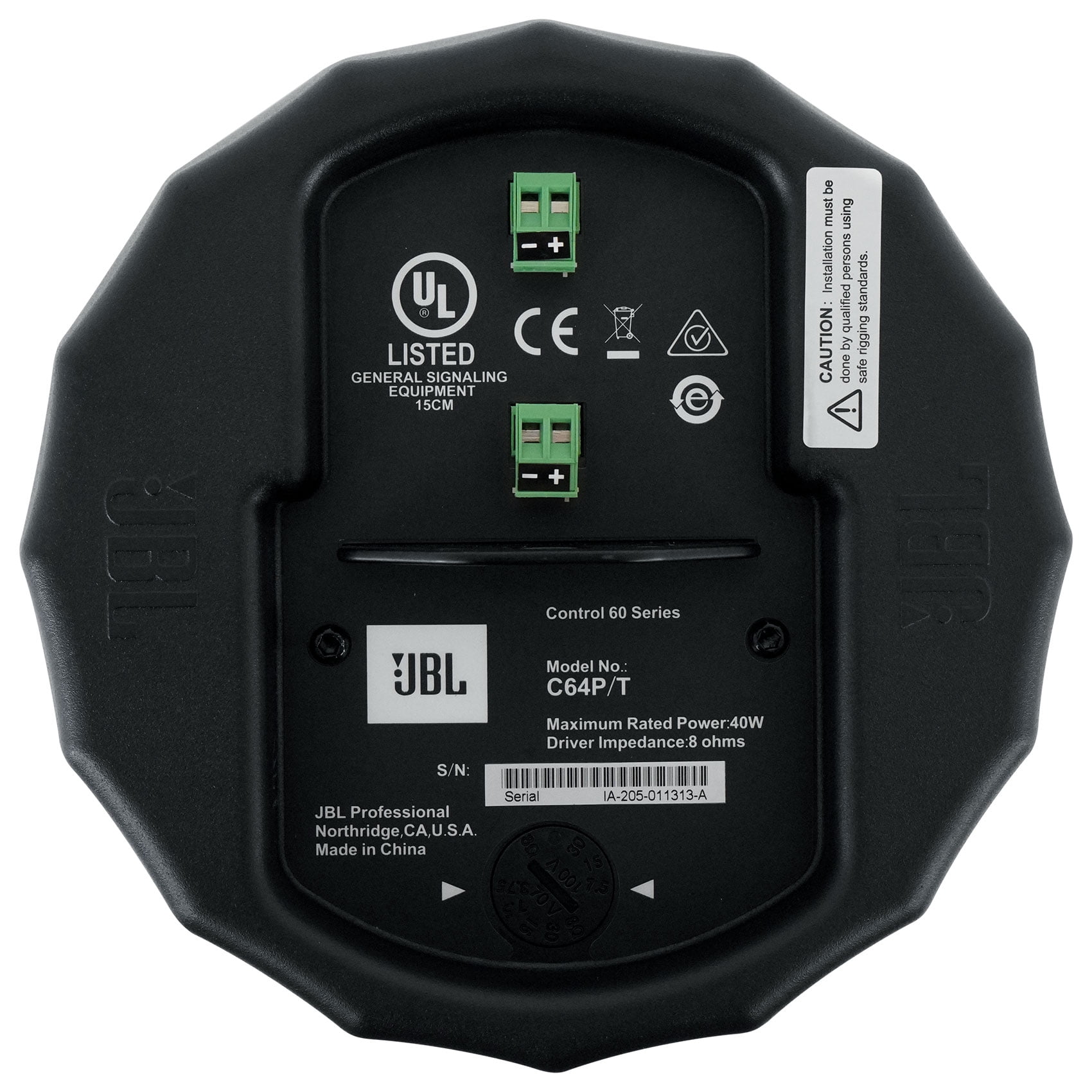

| Inputs & outputs | Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Minimum frequency response | 65 Hz |
| Impedance | 8 ohm |

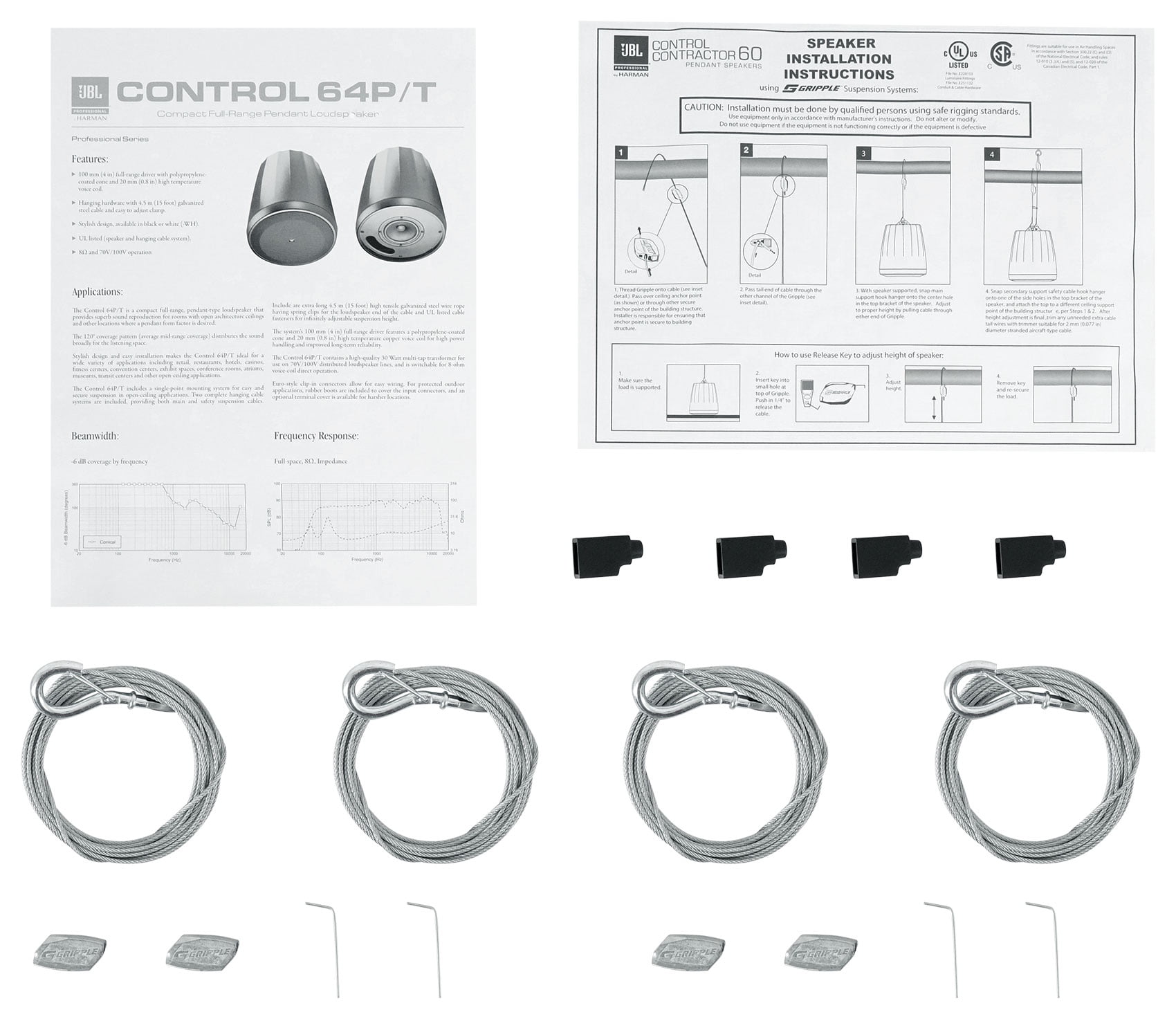

| Accessories included | Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors |
| Assembled product weight | 5.2 lbs |
| Cone composition | Polypropylene-Coated Paper |
| Model | (2) C64P/T |
| Has written warranty | No |
